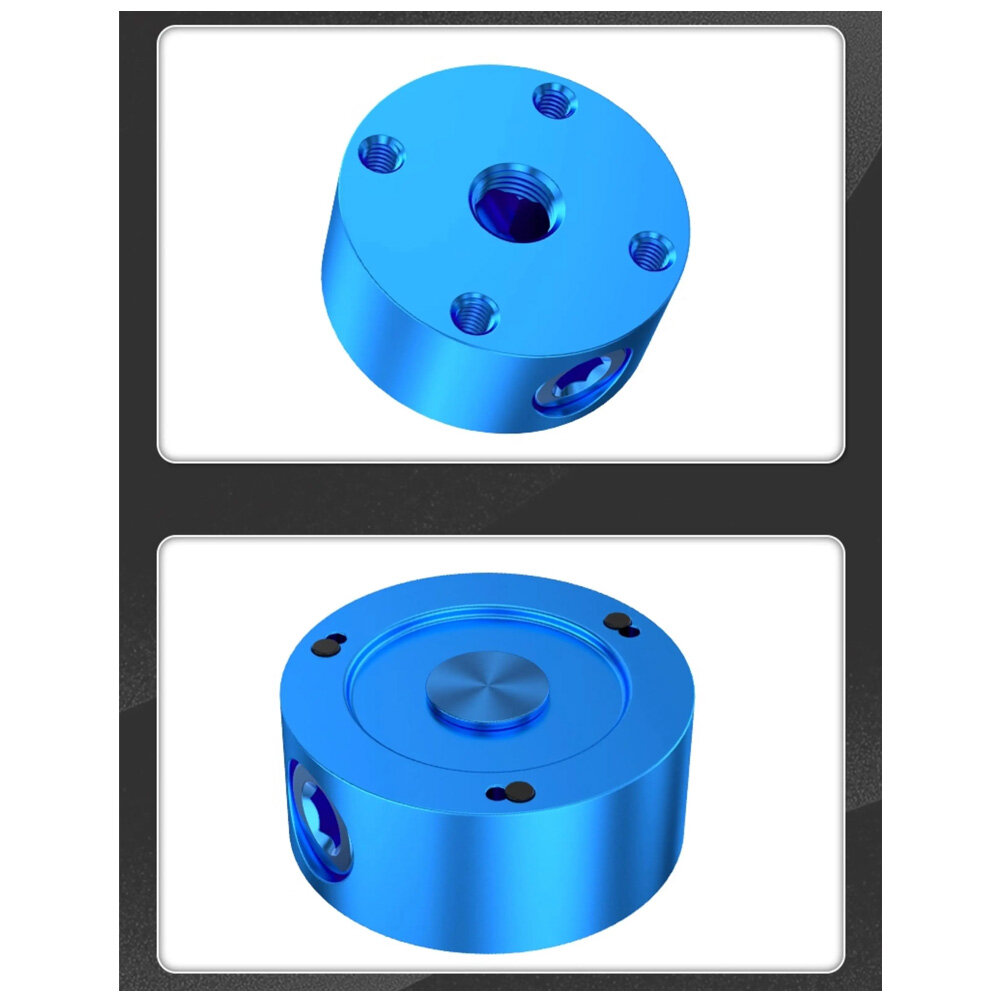

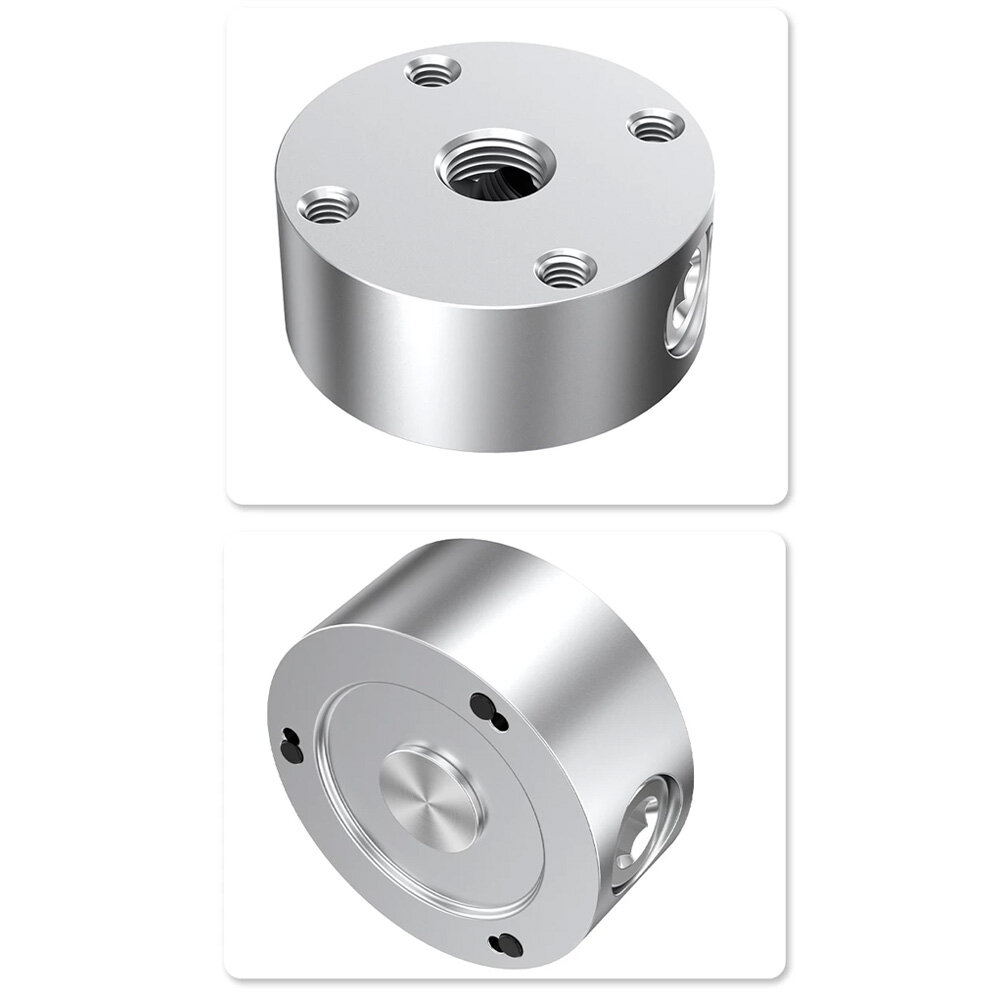

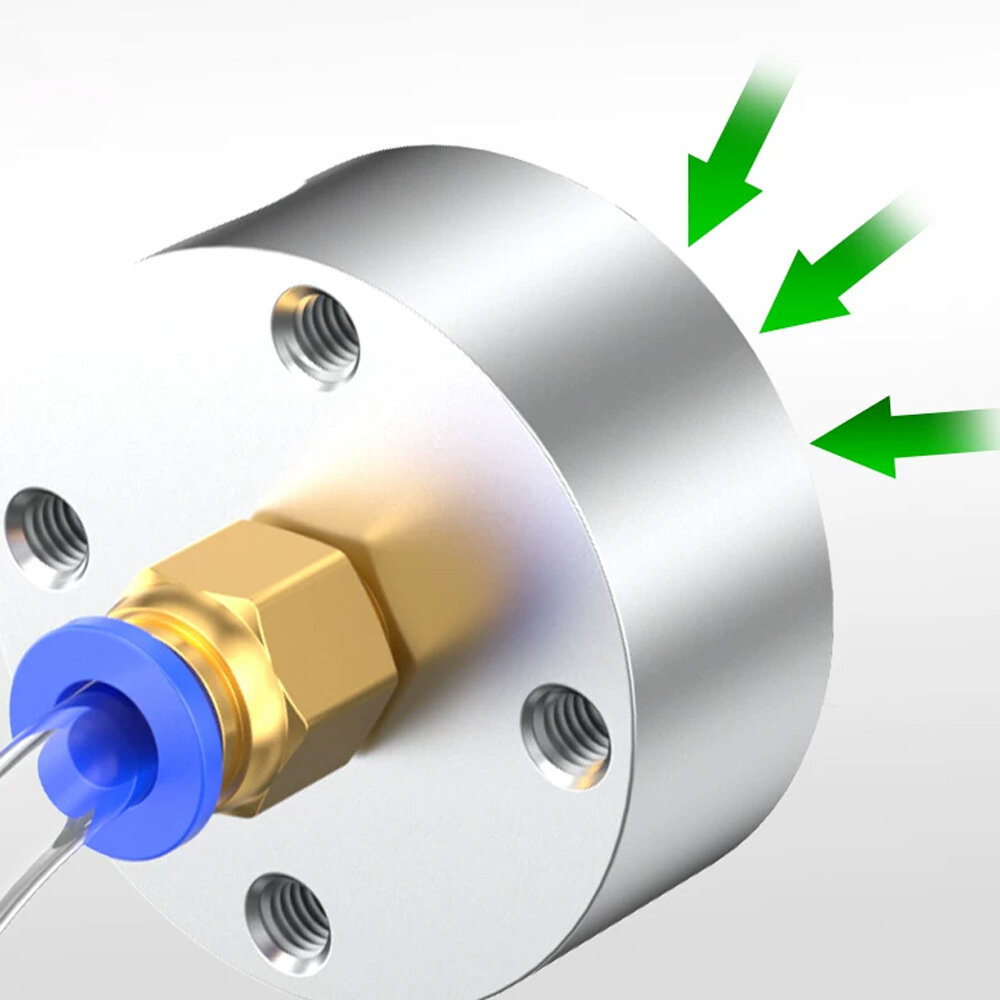

Cylindrical Bernouli Vacuum Grippers ACBA-BNL-A
Non-contact vacuum grippers using Bernoulli principle with aluminum alloy construction, ideal for handling delicate and thin materials without surface damage.
Product Overview
The ACBA-BNL-A series Cylindrical Bernoulli Vacuum Grippers utilize the Bernoulli principle to create a non-contact handling solution. Made from high-quality aluminum alloy with optional POM components, these grippers provide reliable performance for handling lightweight workpieces such as cardboard boxes, thin films, and delicate materials. Available in 7 sizes from Ø20mm to Ø120mm.
Key Features
- Non-contact handling using Bernoulli principle prevents surface damage
- Lightweight aluminum alloy construction for high-speed operations
- Available in 7 sizes from Ø20mm to Ø120mm for various workpiece dimensions
- Optional POM enclosure and PEEK cushion pad for specialized applications
- Standard flow type suitable for general industrial automation
- Operating temperature range 0-60°C covers most manufacturing environments
Technical Specifications
| Product Series | ACBA-BNL-A |
| Product Size - Diameter | Optional: 20mm, 30mm, 40mm, 60mm, 80mm, 100mm, 120mm |
| Enclosure Material | Aluminum Alloy / POM (Polyoxymethylene) |
| Cushion Pad Material | N (Nitrile rubber) / POM / PEEK (Polyetheretherketone) |
| Flow Type | Standard (1-8 bar) |
| Air Source Pressure | 5 Bar |
| Operating Temperature | 0-60°C |
| Models | ACBA-BNL-A-20 to ACBA-BNL-A-120 |
Performance Data
| Model | Air Source Pressure (Bar) | Weight (KG) | Maximum Suction Force (N) |
|---|---|---|---|
| ACBA-BNL-A-20 | 16 g | 2 N | |
| ACBA-BNL-A-30 | 29.8 g | 4 N | |
| ACBA-BNL-A-40 | 48.4 g | 6.5 N | |
| ACBA-BNL-A-60 | 128 g | 13 N | |
| ACBA-BNL-A-80 | 246 g | 26 N | |
| ACBA-BNL-A-100 | 366 g | 46 N | |
| ACBA-BNL-A-120 | 510 g | 89 N |
Typical Applications

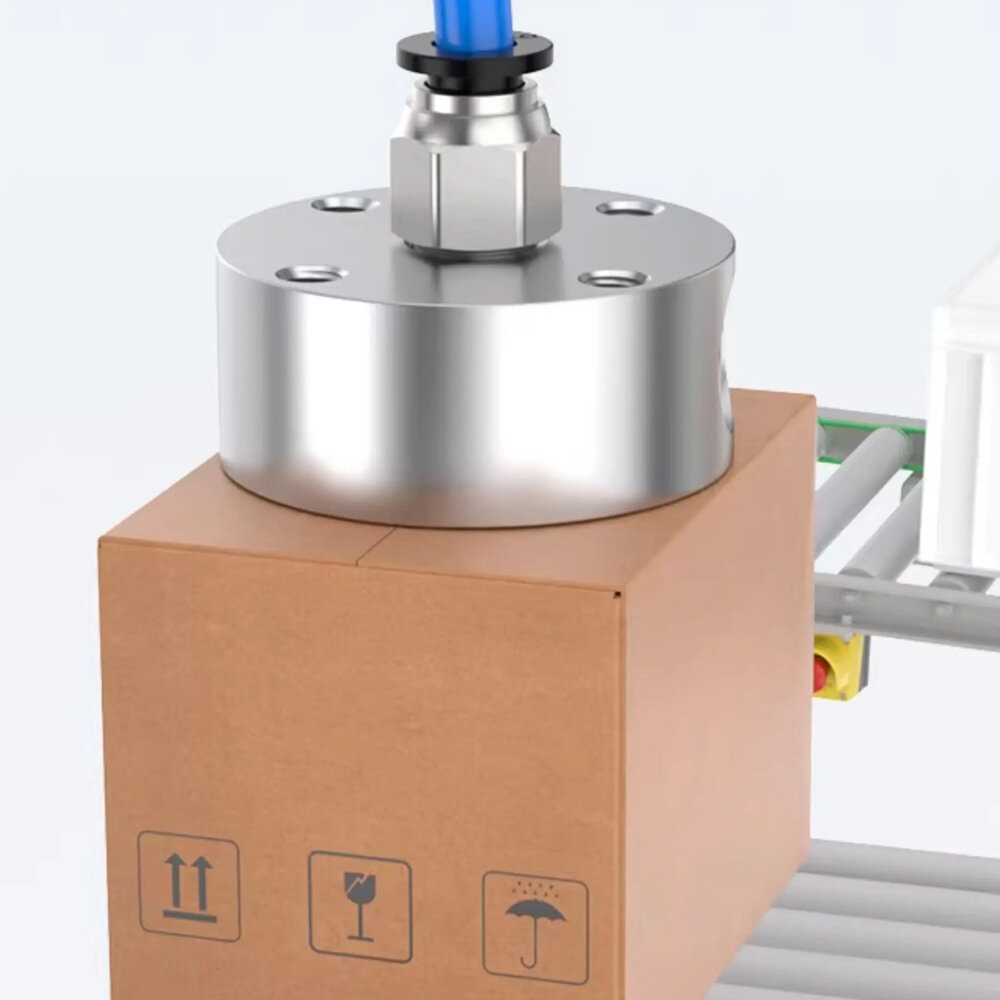

Cardboard box handling in packaging lines
Thin film and sheet material transfer
Delicate workpiece manipulation
High-speed pick and place operations
Automated assembly lines
