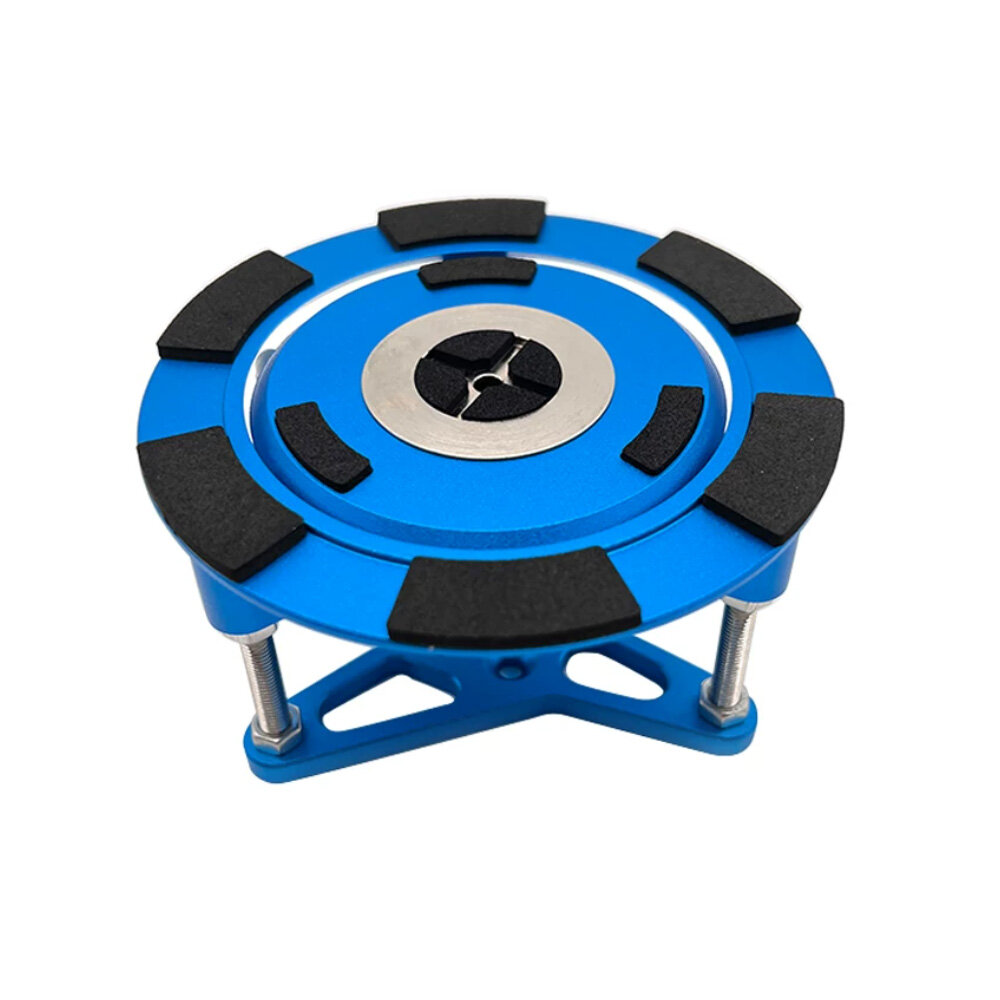

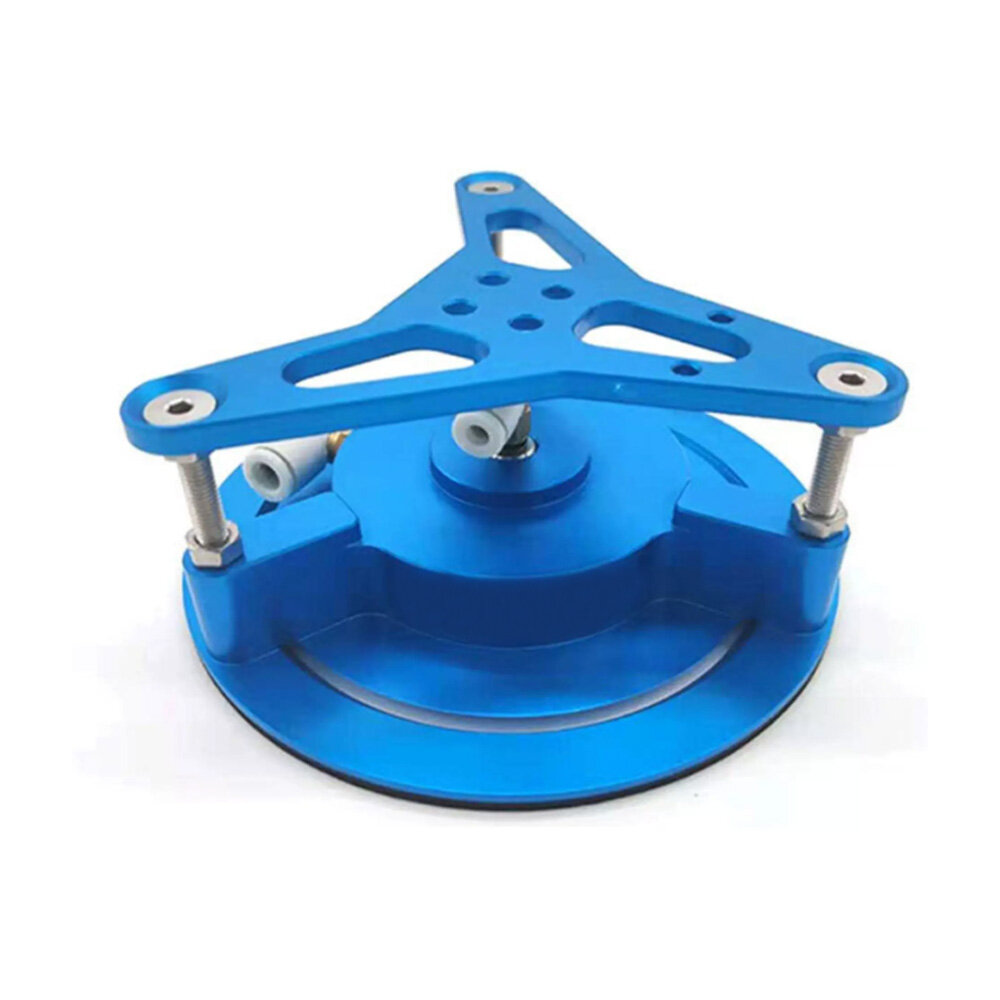

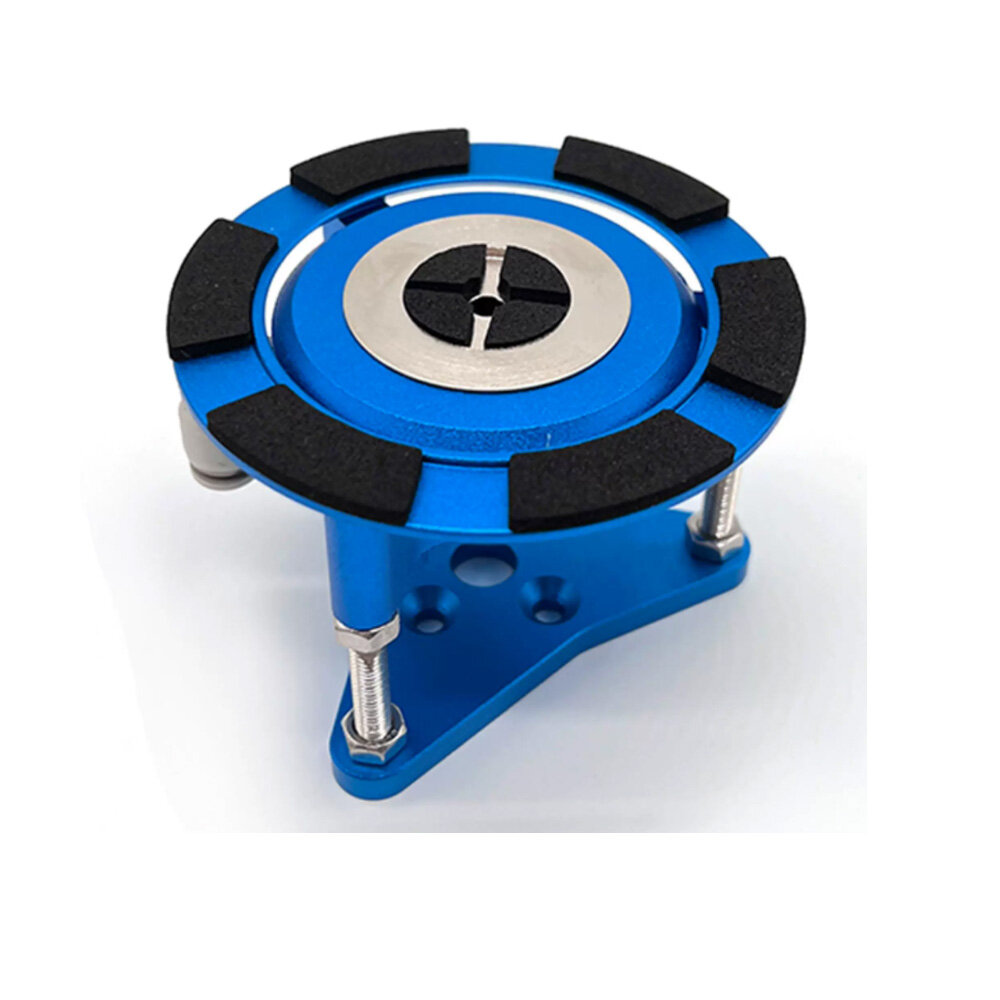

Disc Lightweight Bernouli Vacuum Grippers ACBA-BNL-B
Lightweight disc-shaped vacuum grippers with aluminum alloy body and multiple cushion pad options, ideal for high-speed pick and place operations.
Product Overview
The ACBA-BNL-B series Disc Lightweight Bernouli Vacuum Grippers feature a unique disc design with aluminum alloy construction. Available in 9 sizes from Ø40mm to Ø180mm, these grippers offer versatile cushion pad material options including Sponge, Silicone, POM, PEEK, and Ceramic to match various workpiece requirements. Perfect for high-speed automation applications.
Key Features
- Lightweight disc design for high-speed operations
- Aluminum alloy body for durability and reduced weight
- Available in 9 sizes from Ø40mm to Ø180mm
- Multiple cushion pad material options for various applications
- Standard flow type with 2-8 bar operating pressure
- Low noise operation at 75 DB
Technical Specifications
| Product Series | ACBA-BNL-B |
| Product Size - Diameter | Optional: 40mm, 60mm, 80mm, 100mm, 120mm, 150mm, 160mm, 180mm |
| Main Body Material | Aluminum Alloy |
| Cushion Pad Material | Sponge / Silicone / POM / PEEK / Ceramic |
| Flow Type | Standard (2-8 bar) |
| Air Source Pressure | 2-8 bar |
| Air Consumption | 100 L/min |
| Noise | 75 DB |
| Models | ACBA-BNL-B-40 to ACBA-BNL-B-180 |
Performance Data
| Model | Air Source Pressure (Bar) | Weight (KG) | Maximum Suction Force (N) |
|---|---|---|---|
| ACBA-BNL-B-40 | 2-8 bar | ||
| ACBA-BNL-B-60 | 2-8 bar | ||
| ACBA-BNL-B-80 | 2-8 bar | ||
| ACBA-BNL-B-100 | 2-8 bar | ||
| ACBA-BNL-B-120 | 2-8 bar | ||
| ACBA-BNL-B-150 | 2-8 bar | ||
| ACBA-BNL-B-160 | 2-8 bar | ||
| ACBA-BNL-B-180 | 2-8 bar |
Typical Applications
High-speed pick and place operations
Lightweight workpiece handling
Packaging and sorting applications
Automated assembly lines
Material transfer systems
