PCB Vacuum Grippers ACBA-PCB-A
Specialized vacuum grippers designed for PCB circuit board handling, ensuring safe and precise manipulation in electronics manufacturing.
Product Overview

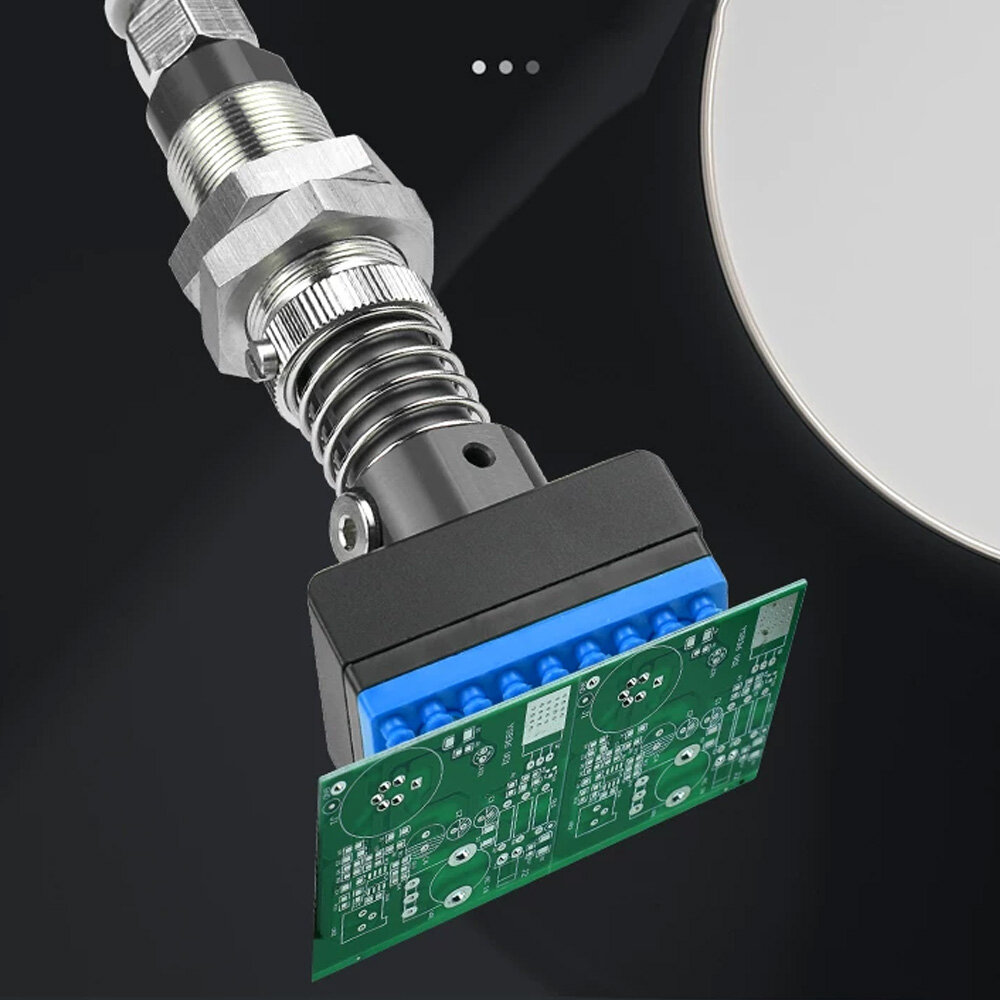

The ACBA-PCB-A series PCB Vacuum Grippers are specifically engineered for handling printed circuit boards and other delicate electronic components. Featuring a unique multi-nozzle design with silicone cushion pads, these grippers provide gentle yet secure grip on PCB surfaces without causing damage. Available in 4 sizes (30x42mm, 60x42mm, 90x42mm, 60x126mm), they incorporate a built-in spring buffer mechanism for shock absorption and precise positioning. The aluminum alloy body ensures durability while maintaining lightweight for high-speed operations.
Key Features
- Specialized design for PCB and electronic component handling
- Multi-nozzle silicone cushion pad for gentle grip

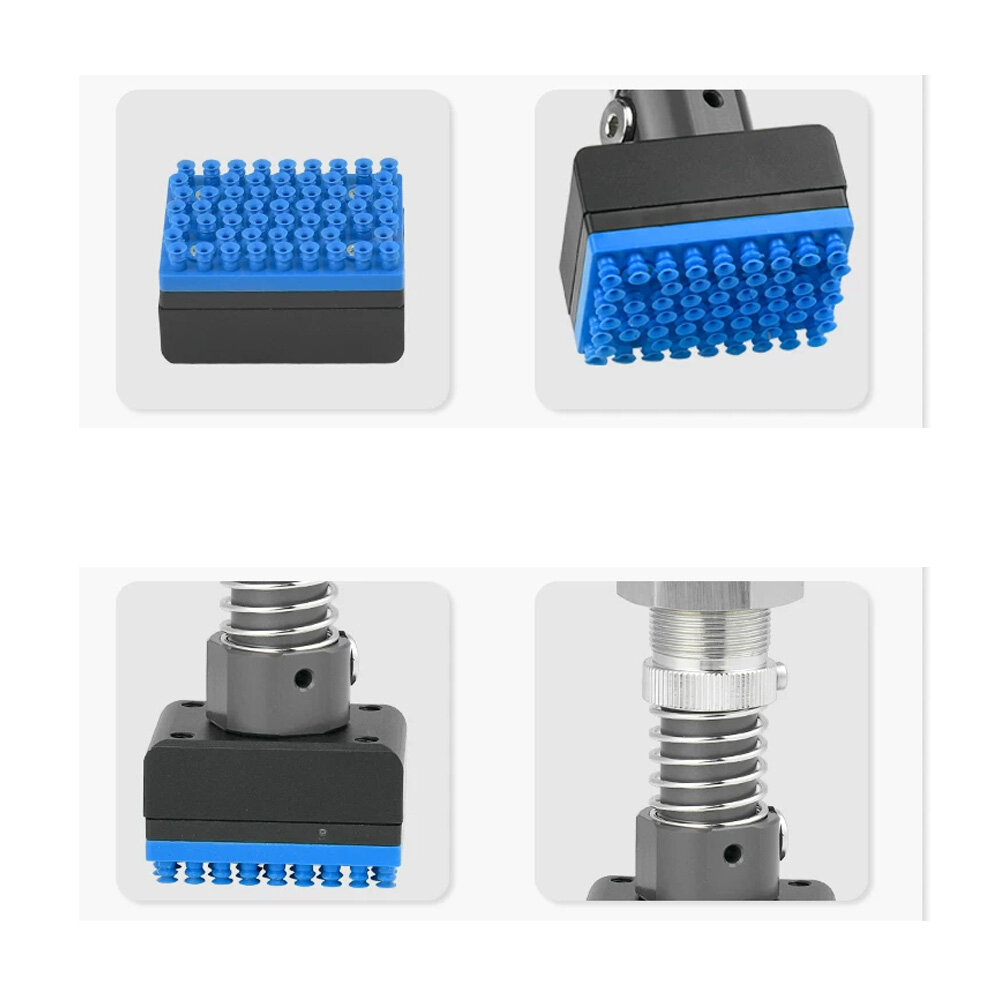

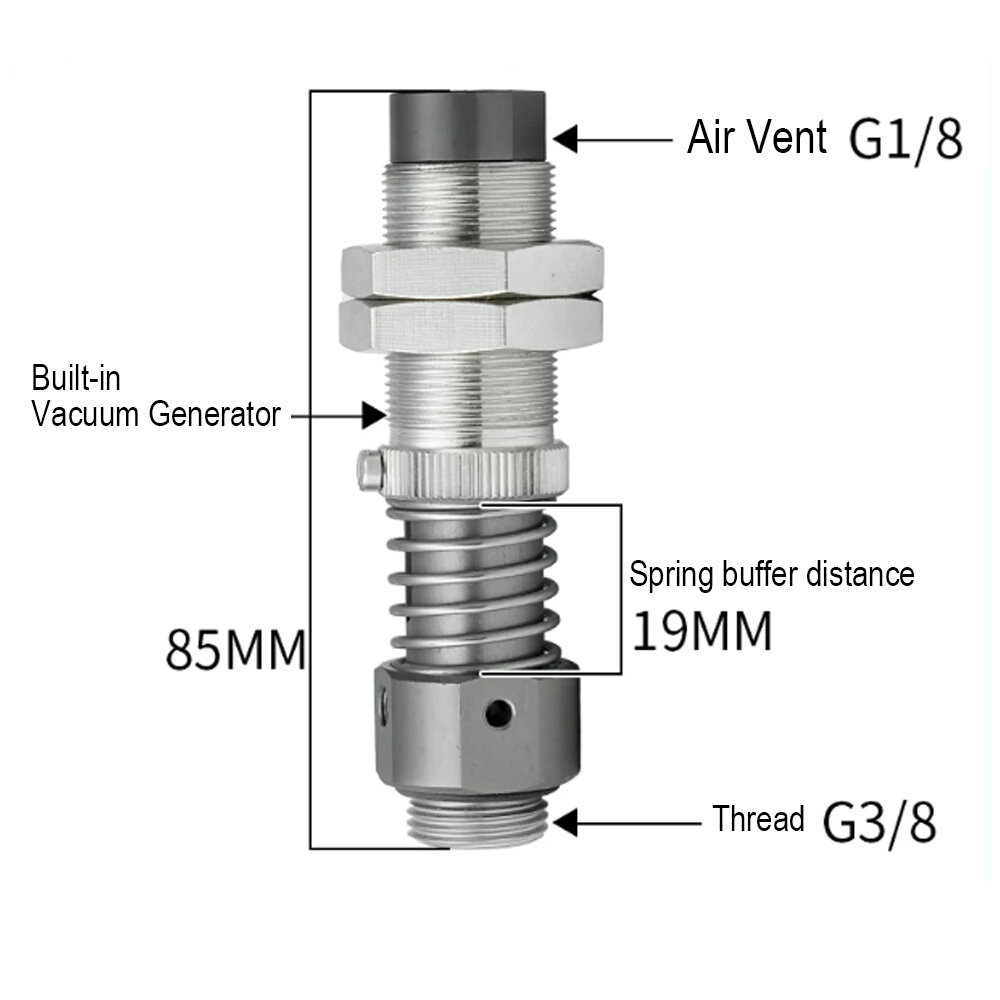

- Built-in spring buffer mechanism (19mm travel)
- Aluminum alloy body for durability and lightweight

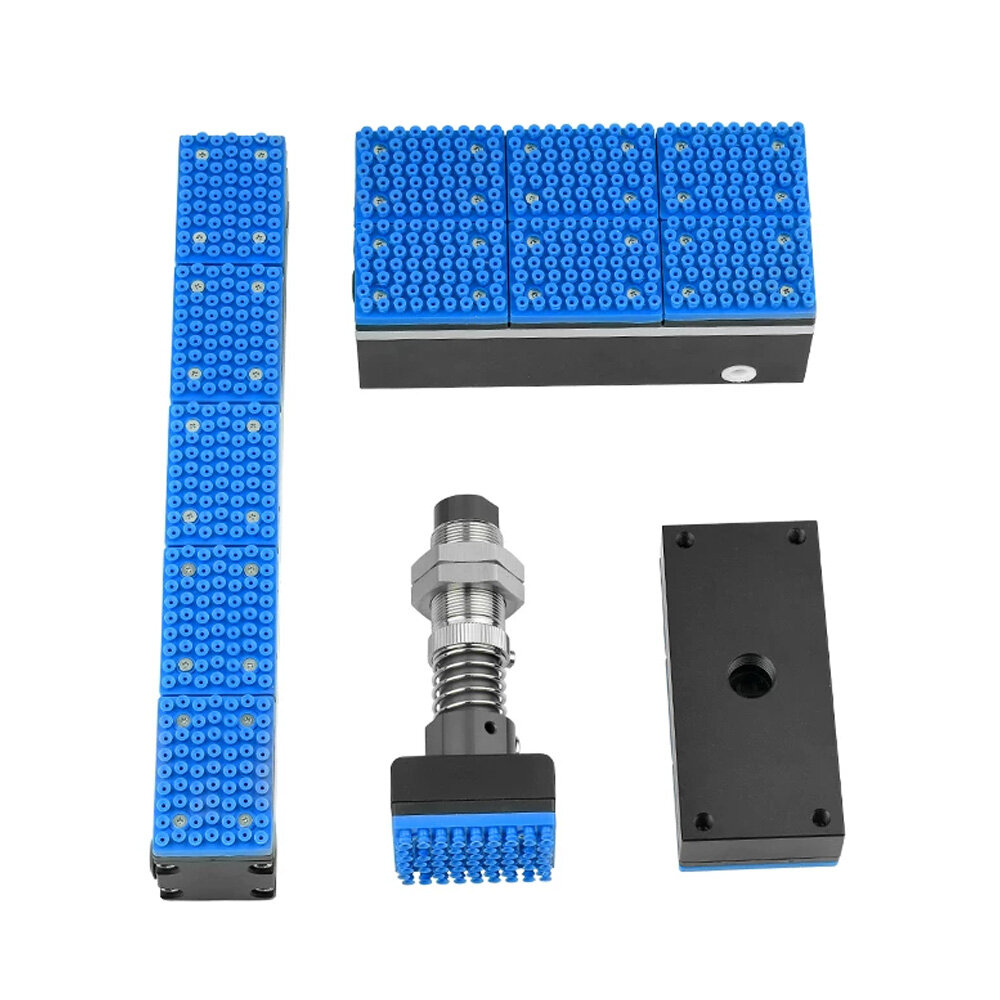

- Four size options for various PCB dimensions
- Operating pressure range 2-8 bar
- Low noise operation at 75 DB
- Precise positioning capability for SMT applications
Technical Specifications

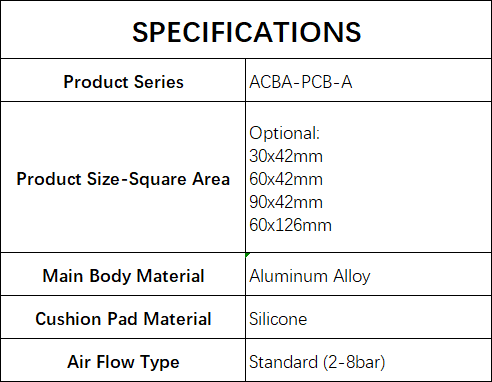

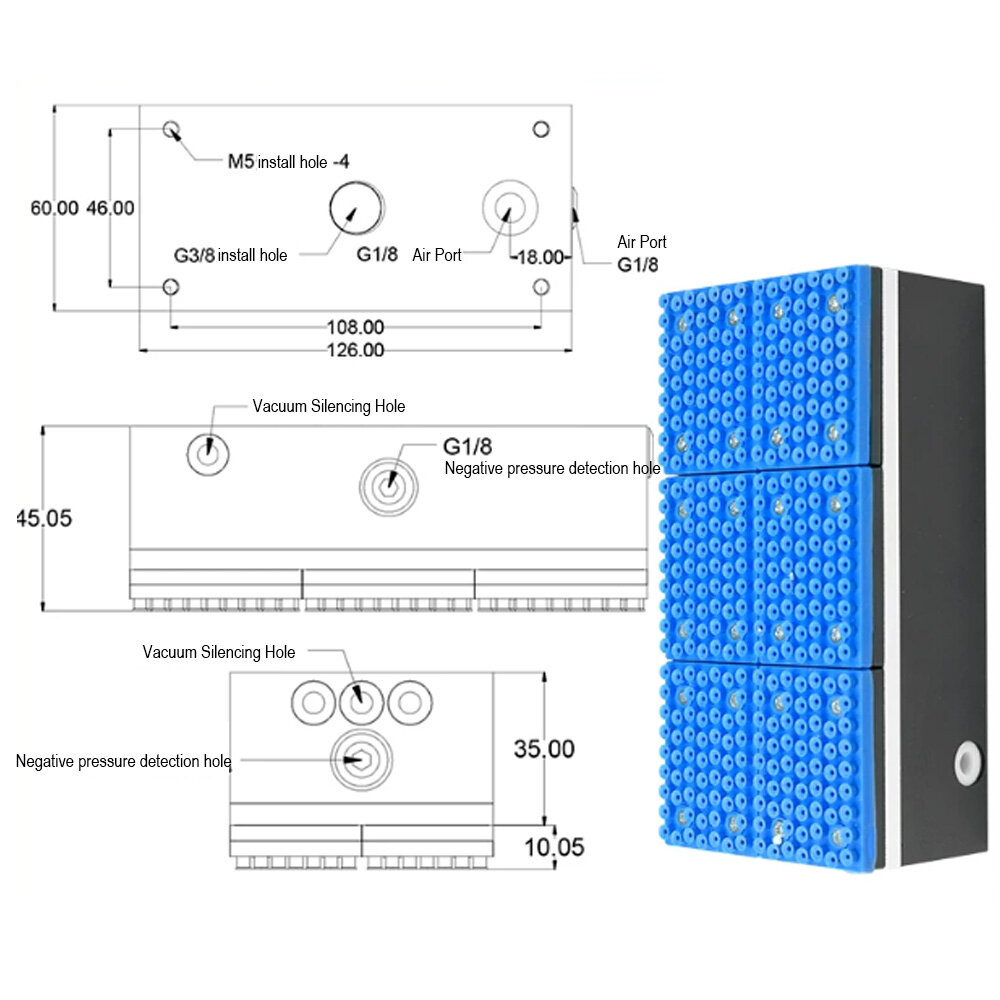

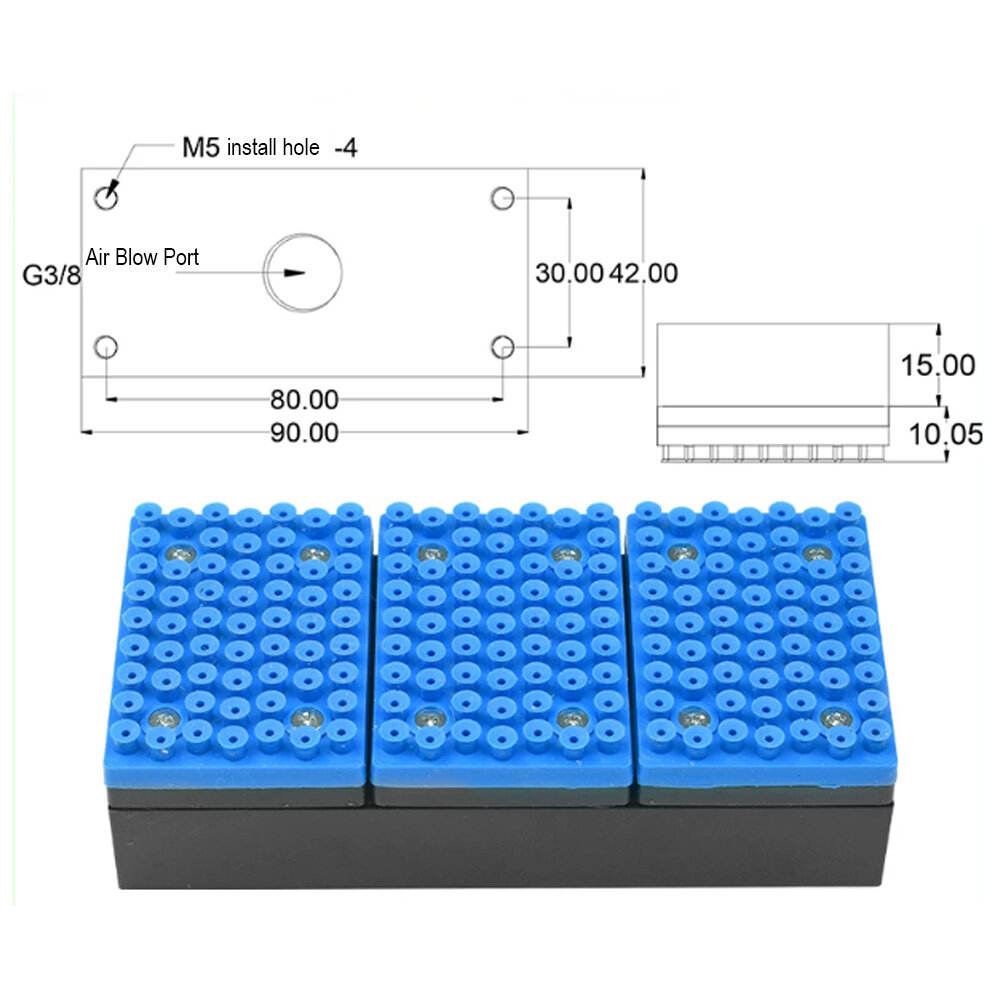

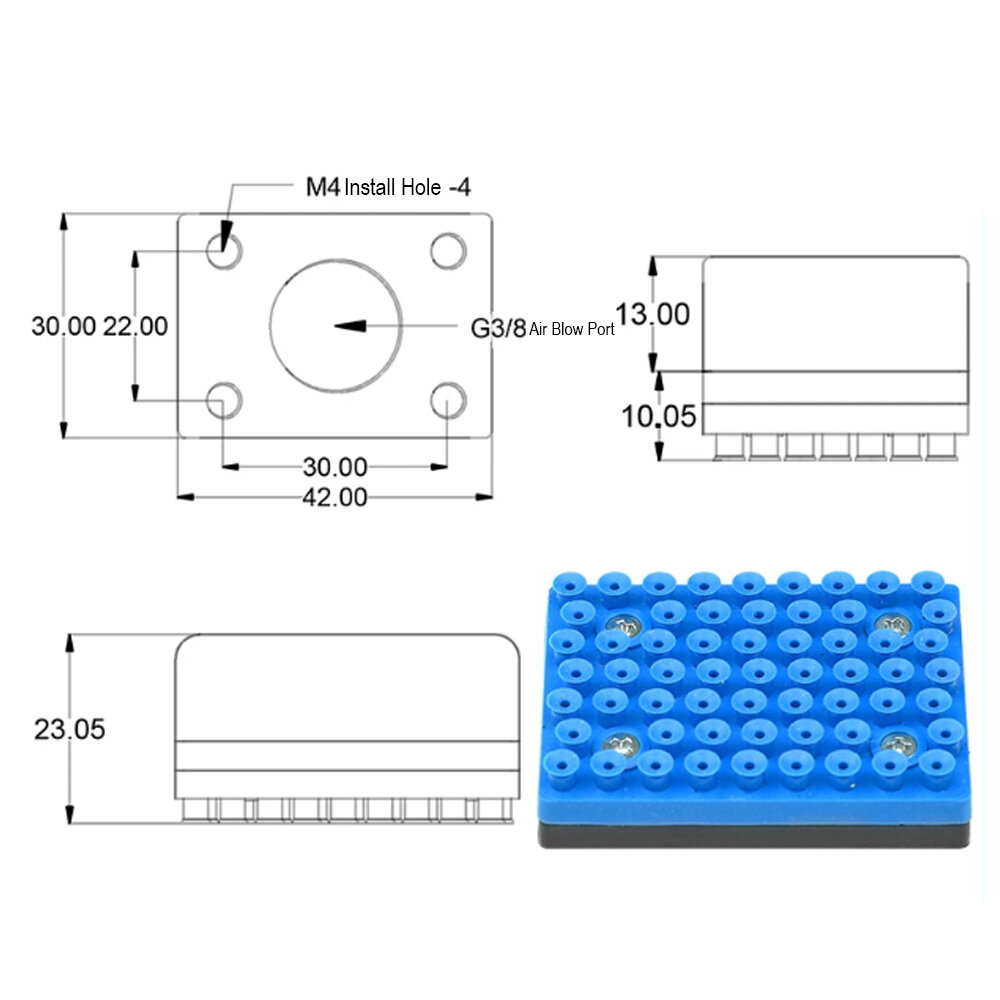

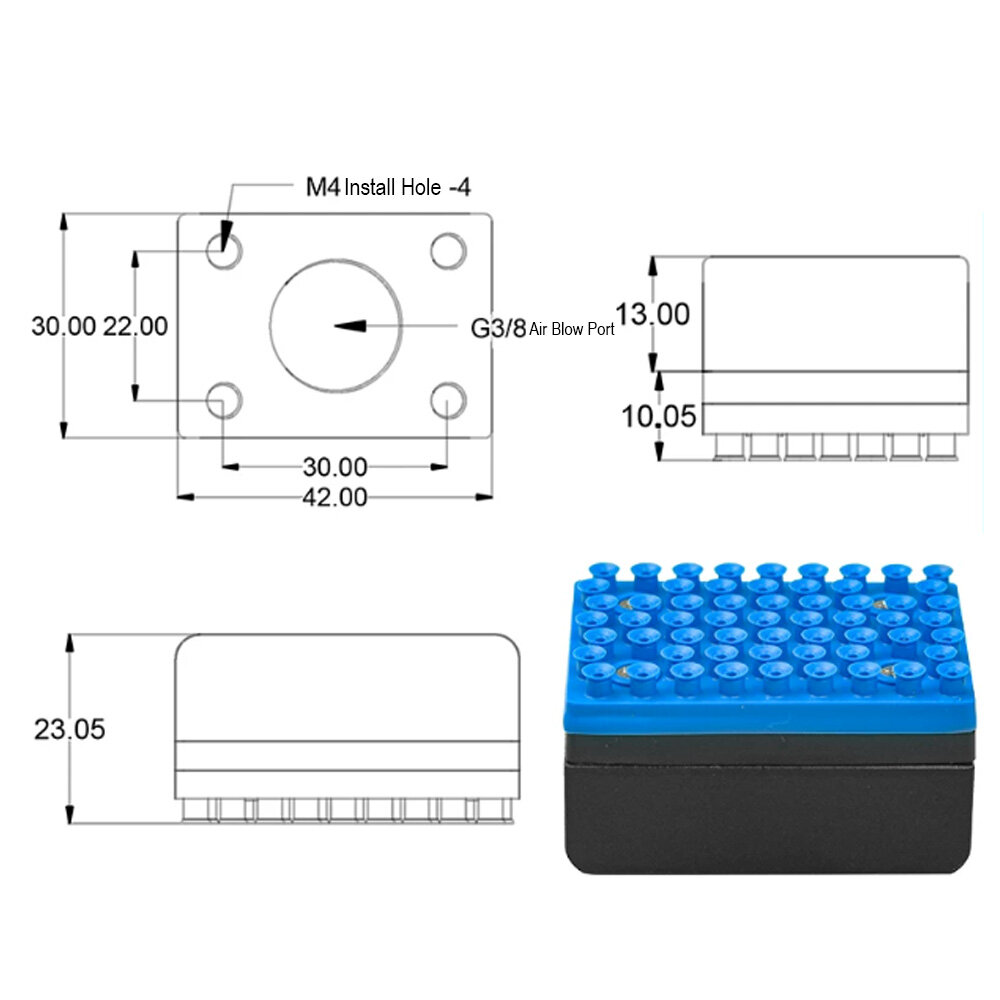

| Product Series | ACBA-PCB-A |
| Product Size - Square Area | Optional: 30x42mm, 60x42mm, 90x42mm, 60x126mm |
| Main Body Material | Aluminum Alloy |
| Cushion Pad Material | Silicone |
| Air Flow Type | Standard (2-8 bar) |
Performance Data
| Model | Air Source Pressure (Bar) | Weight (KG) | Maximum Suction Force (N) |
|---|---|---|---|
| ACBA-PCB-A-30-42 | 2bar~8bar | ||
| ACBA-PCB-A-60-42 | 2bar~8bar | ||
| ACBA-PCB-A-90-42 | 2bar~8bar | ||
| ACBA-PCB-A-60-126 | 2bar~8bar |
Typical Applications
PCB circuit board handling in SMT lines
Electronic component assembly
Semiconductor wafer transfer
Display panel manipulation
Precision electronics manufacturing
Automated PCB testing systems
