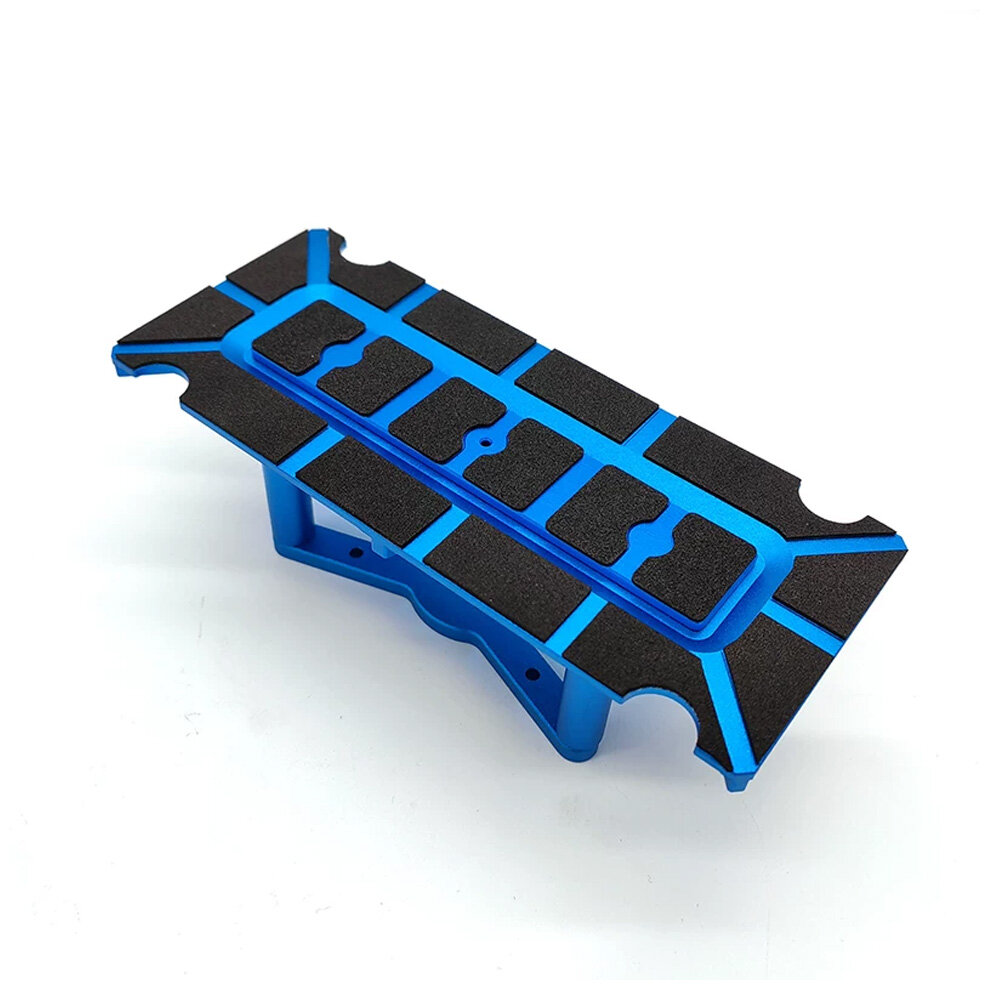

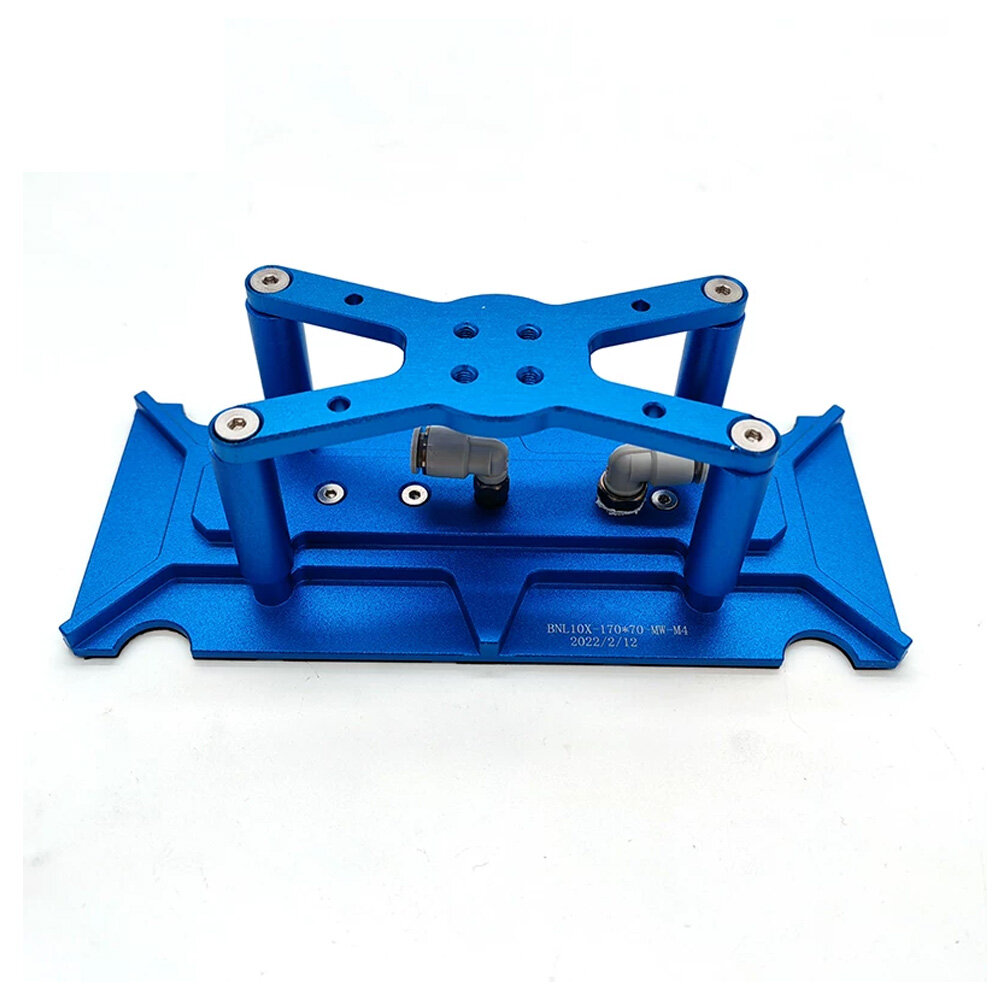

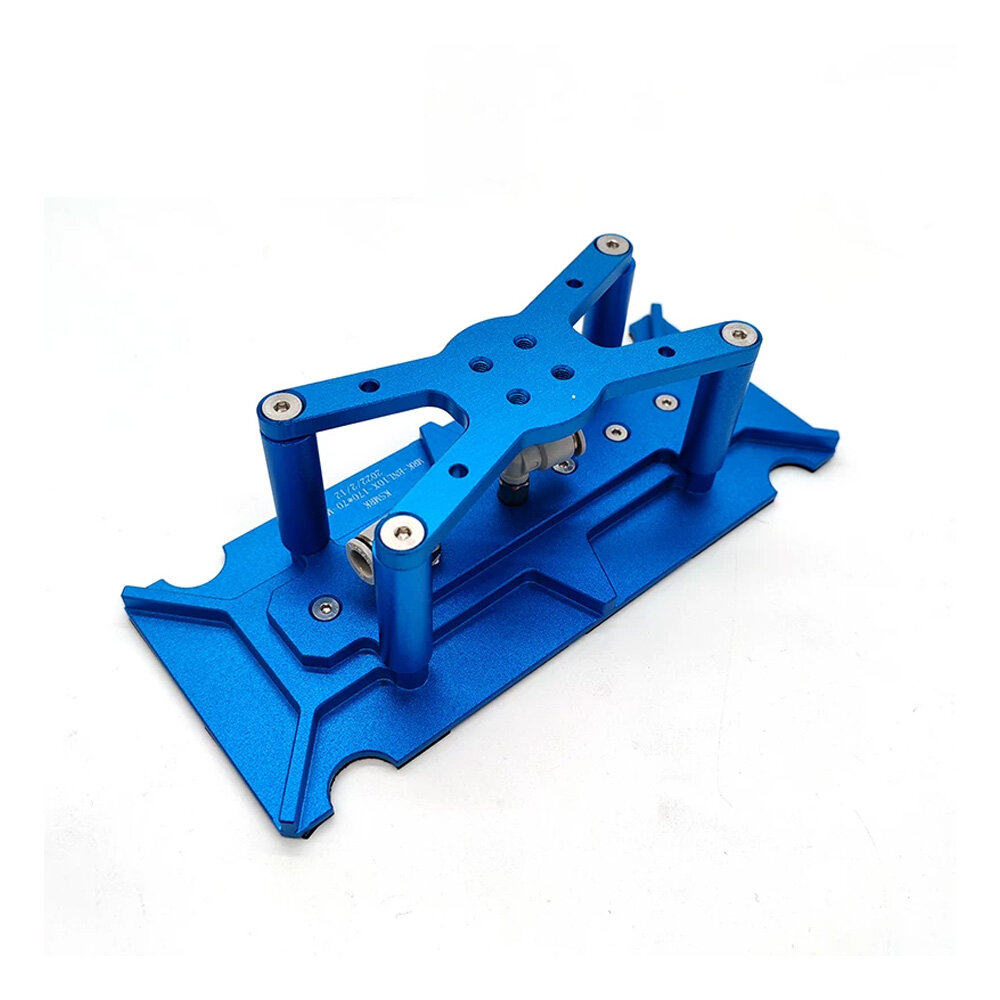

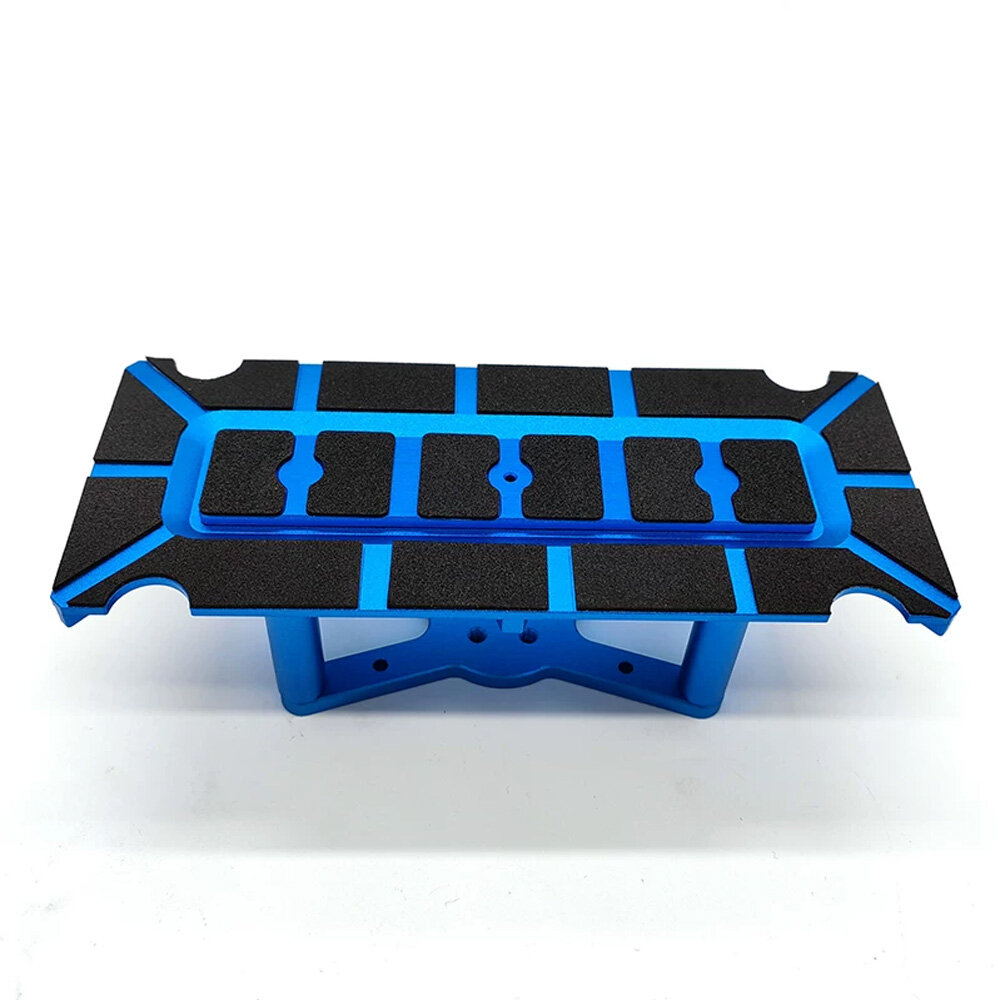

Square Lightweight Bernouli Vacuum Grippers ACBA-BNL-C
Square-shaped lightweight vacuum grippers with aluminum alloy body and multiple cushion pad options, ideal for handling flat panels and rectangular workpieces.
Product Overview
The ACBA-BNL-C series Square Lightweight Bernouli Vacuum Grippers feature a unique square design with aluminum alloy construction. Available in 6 sizes from 85x85mm to 180x80mm, these grippers offer versatile cushion pad material options including Sponge, Silicone, POM, PEEK, and Ceramic to match various workpiece requirements. Perfect for handling flat panels, PCBs, and rectangular workpieces in high-speed automation applications.
Key Features
- Square design for uniform grip on flat panels
- Lightweight aluminum alloy construction
- Available in 6 sizes from 85x85mm to 180x80mm
- Multiple cushion pad material options for various applications
- Standard flow type with 2-8 bar operating pressure
- Low noise operation at 70 DB
Technical Specifications
| Product Series | ACBA-BNL-C |
| Product Size - Square Area | Optional: 85x85mm, 100x50mm, 150x50mm, 150x70mm, 170x70mm, 180x80mm |
| Main Body Material | Aluminum Alloy |
| Cushion Pad Material | Sponge / Silicone / POM / PEEK / Ceramic |
| Flow Type | Standard (2-8 bar) |
| Air Source Pressure | 2-8 bar |
| Air Consumption | 100 L/min |
| Noise | 70 DB |
| Models | ACBA-BNL-C-85-85 to ACBA-BNL-C-180-80 |
Performance Data
| Model | Air Source Pressure (Bar) | Weight (KG) | Maximum Suction Force (N) |
|---|---|---|---|
| ACBA-BNL-C-85-85 | 2-8 bar | ||
| ACBA-BNL-C-100-50 | 2-8 bar | ||
| ACBA-BNL-C-150-50 | 2-8 bar | ||
| ACBA-BNL-C-150-70 | 2-8 bar | ||
| ACBA-BNL-C-170-70 | 2-8 bar | ||
| ACBA-BNL-C-180-80 | 2-8 bar |
Typical Applications
Flat panel handling
PCB circuit board manipulation
Rectangular workpiece transfer
High-speed pick and place operations
Automated assembly lines
