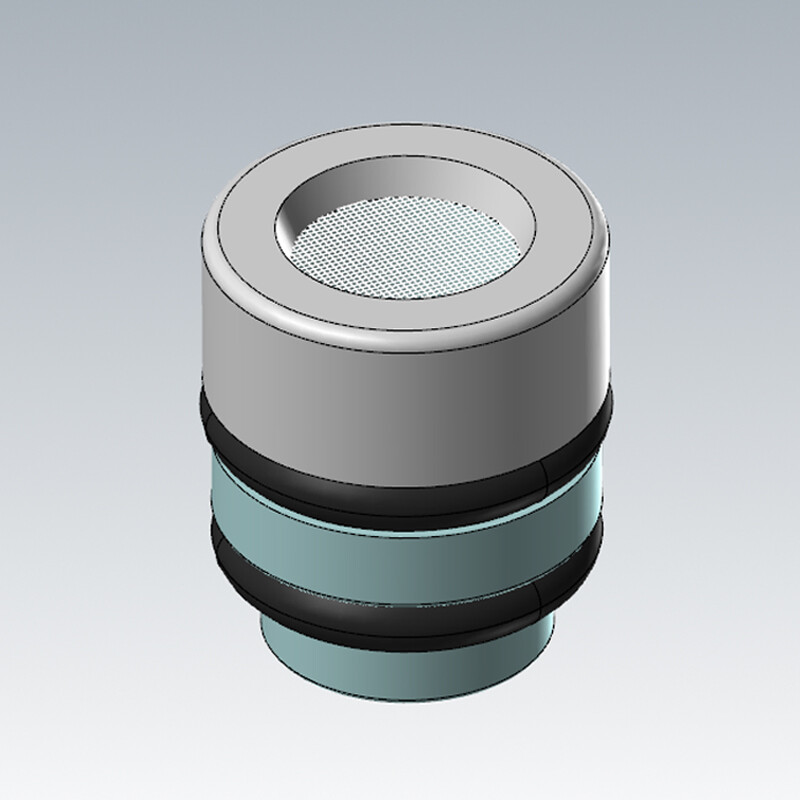

Vacuum Suction Valve ACBA-FX-A

DIY vacuum suction valve for customizing vacuum suction plates, featuring automatic sealing when workpiece is not present.

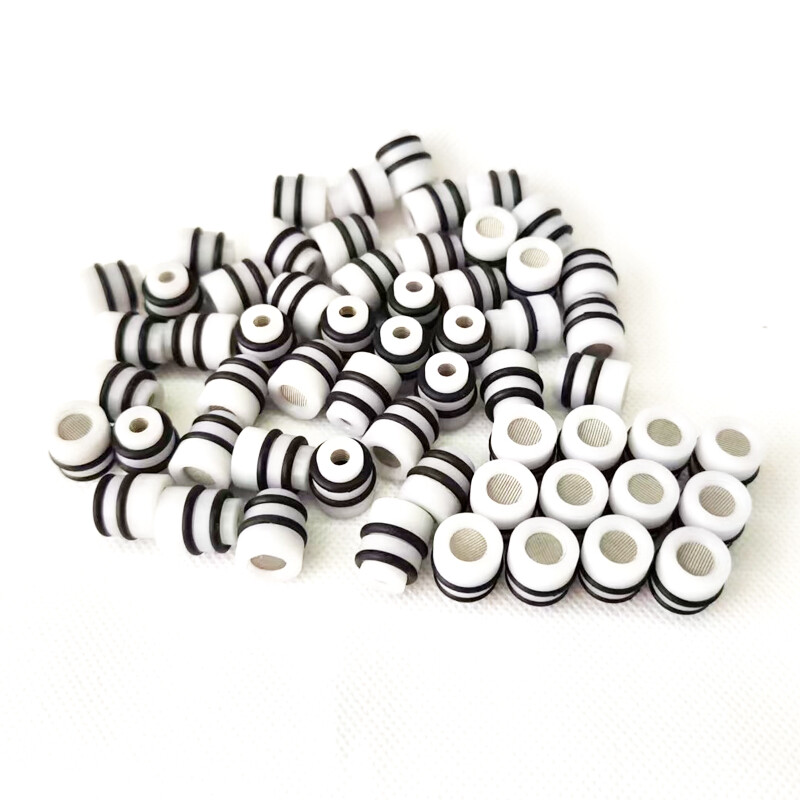

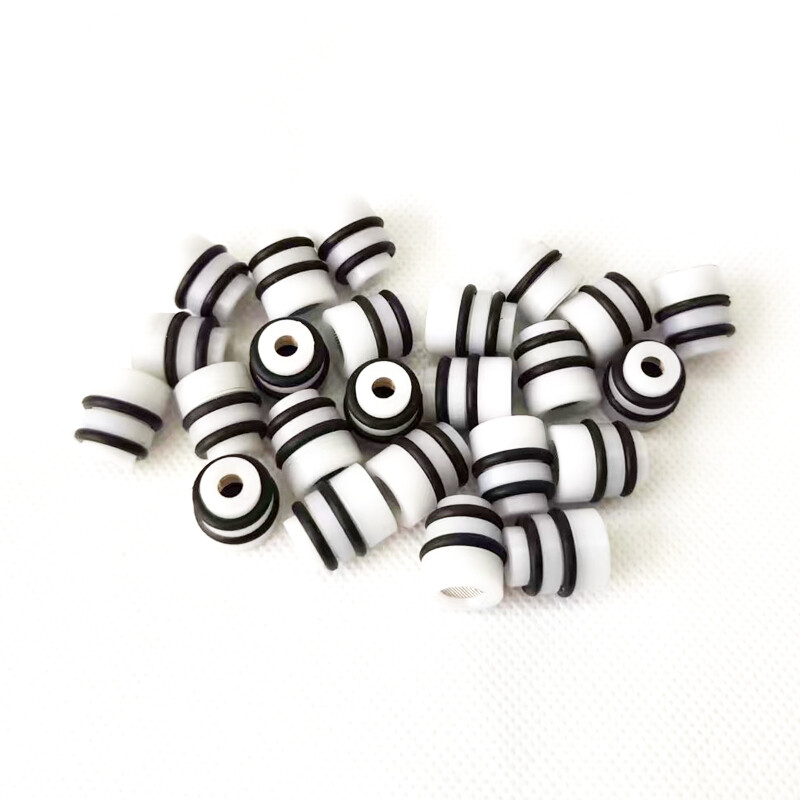

Vacuum Suction Valve ACBA-FX-A
Vacuum Suction Valve ACBA-FX-A view 2Vacuum Suction Valve ACBA-FX-A view 3Vacuum Suction Valve ACBA-FX-A view 4Vacuum Suction Valve ACBA-FX-A view 5Vacuum Suction Valve ACBA-FX-A view 6Vacuum Suction Valve ACBA-FX-A view 7Vacuum Suction Valve ACBA-FX-A view 8Vacuum Suction Valve ACBA-FX-A view 9Vacuum Suction Valve ACBA-FX-A view 10

Product Overview

The ACBA-FX-A Vacuum Suction Valve is an innovative component that enables you to DIY custom vacuum suction plates. With its intelligent design, the valve automatically seals when the suction hole is not covered by a workpiece, and creates vacuum adsorption when covered. This unique technology allows for flexible, customizable suction solutions for various workpiece sizes and shapes.

Key Features

  • DIY custom vacuum suction plate creation
  • Automatic sealing when workpiece is not present
  • Intelligent vacuum adsorption when covered
  • POM main body for durability and chemical resistance
  • Stainless steel filter net and spring for longevity
  • Nitrile rubber sealing ball and ring for reliable sealing
  • Compact 12.55mm diameter design
Inquire This Product

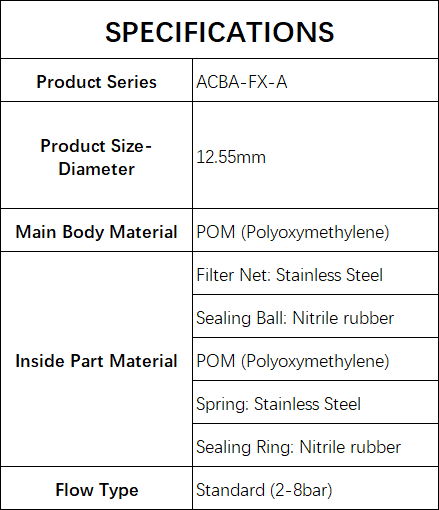

Technical Specifications

Product SeriesACBA-FX-A
Product Size - Diameter12.55mm
Main Body MaterialPOM (Polyoxymethylene)
Inside Part Material - Filter NetStainless Steel
Inside Part Material - Sealing BallNitrile rubber
Inside Part Material - BodyPOM (Polyoxymethylene)
Inside Part Material - SpringStainless Steel
Inside Part Material - Sealing RingNitrile rubber
Flow TypeStandard (2-8 bar)

Product Dimensions

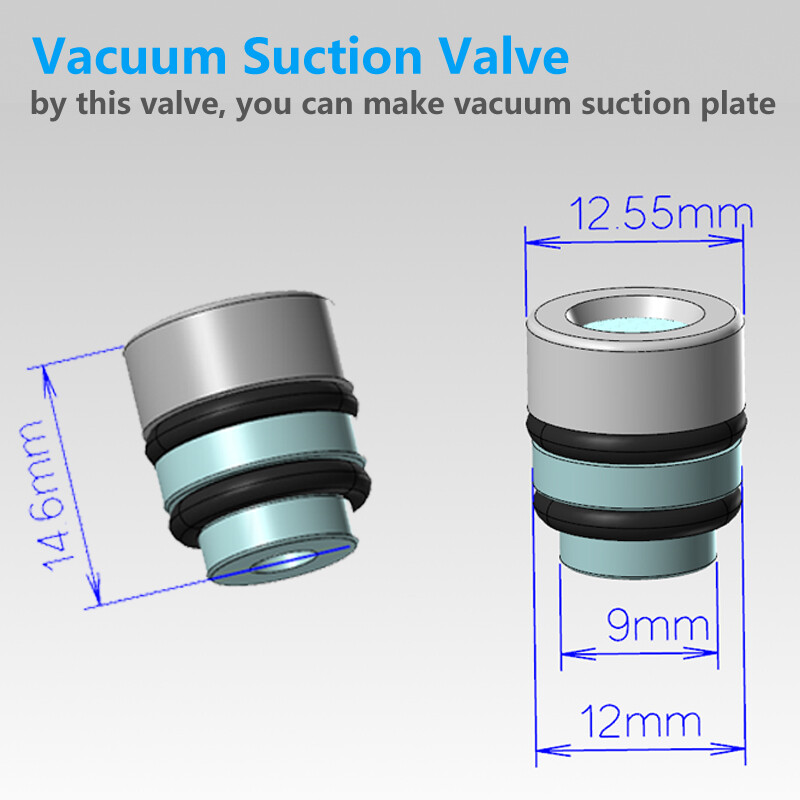

Overall Dimensions

  • Overall Height14.6mm
  • Top Diameter12.55mm
  • Bottom Diameter12mm
  • Inner Diameter9mm

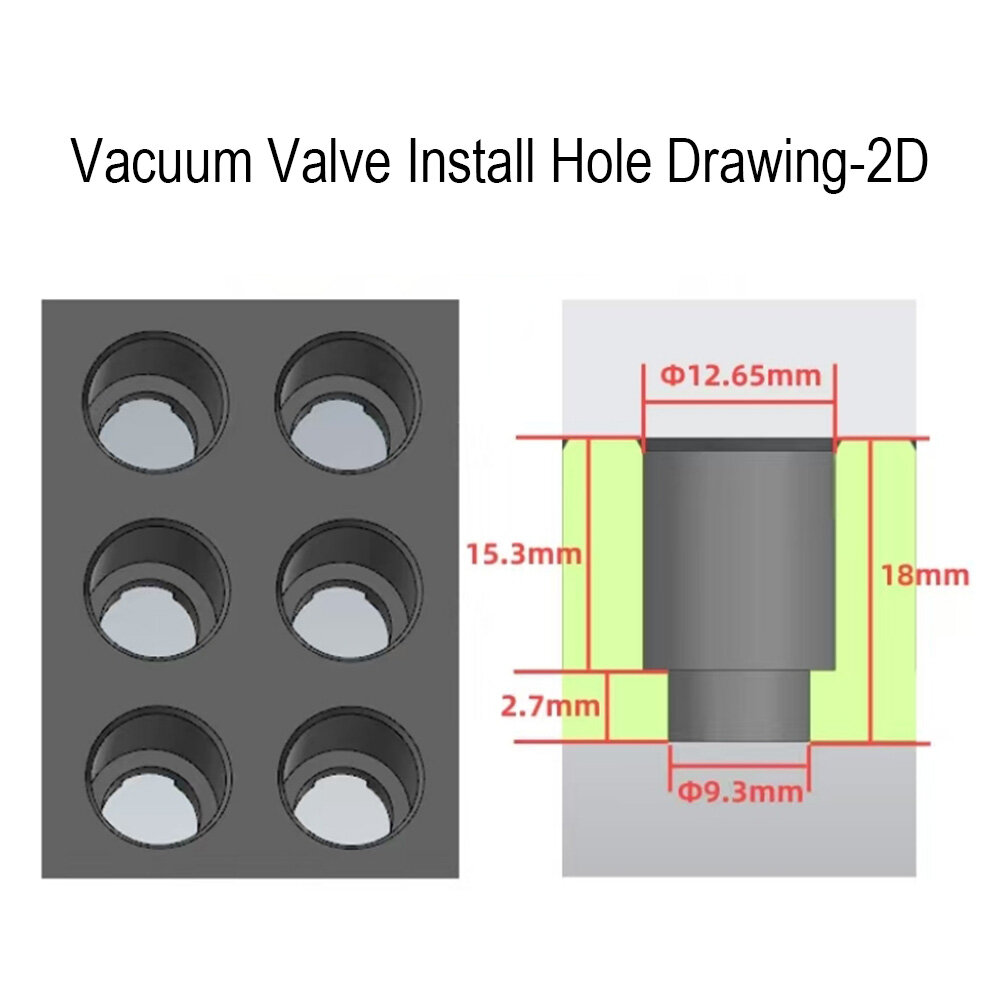

Installation Hole

  • Hole DiameterΦ12.65mm
  • Installation Depth15.3mm
  • Total Depth18mm
  • Bottom DiameterΦ9.3mm
  • Step Depth2.7mm

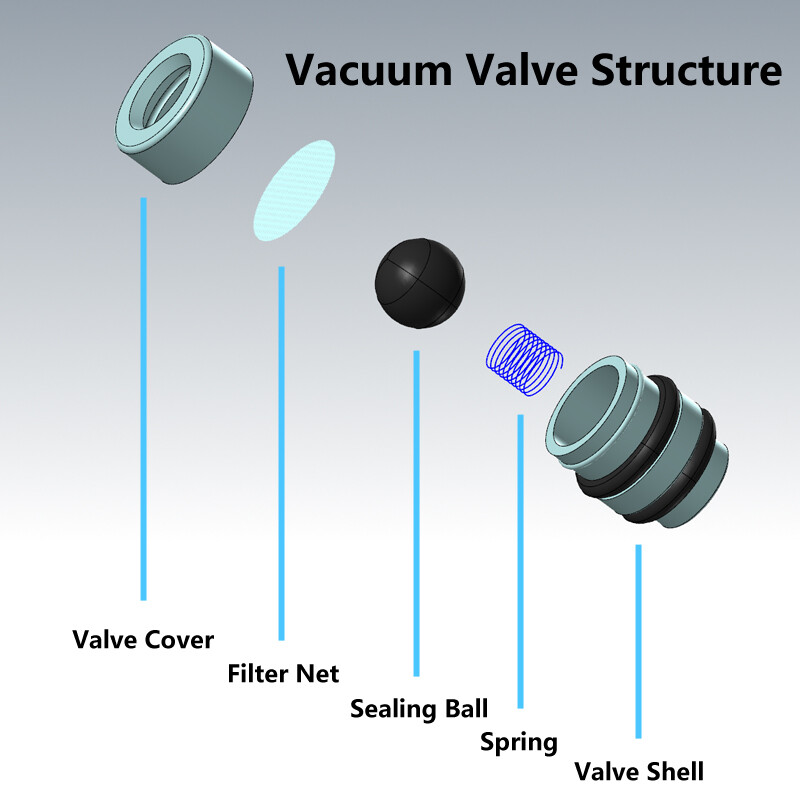

Valve Structure

Vacuum Valve Structure Diagram

Component Breakdown

  • 1

    Valve Cover

    Top protective cover

  • 2

    Filter Net

    Stainless steel mesh filter

  • 3

    Sealing Ball

    Nitrile rubber ball for sealing

  • 4

    Spring

    Stainless steel spring for ball return

  • 5

    Valve Shell

    POM main body housing

Working Principle

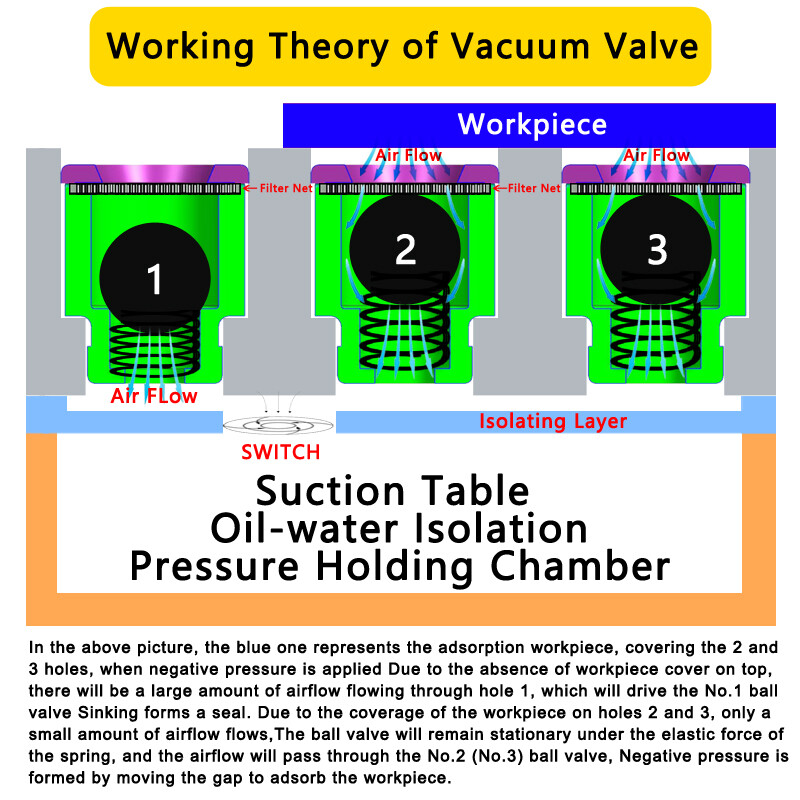

Working Theory of Vacuum Valve

How It Works

The ACBA-FX-A Vacuum Suction Valve operates on an intelligent automatic sealing principle:

  1. Step 1:When the suction hole is not covered by a workpiece, a large amount of airflow flows through hole 1, which drives the No.1 ball valve to sink and form a seal automatically.
  2. Step 2:When the workpiece covers holes 2 and 3, only a small amount of airflow flows through these holes.
  3. Step 3:The ball valve remains stationary under the elastic force of the spring, and airflow passes through the gap of No.2 and No.3 ball valves, forming negative pressure to adsorb the workpiece.

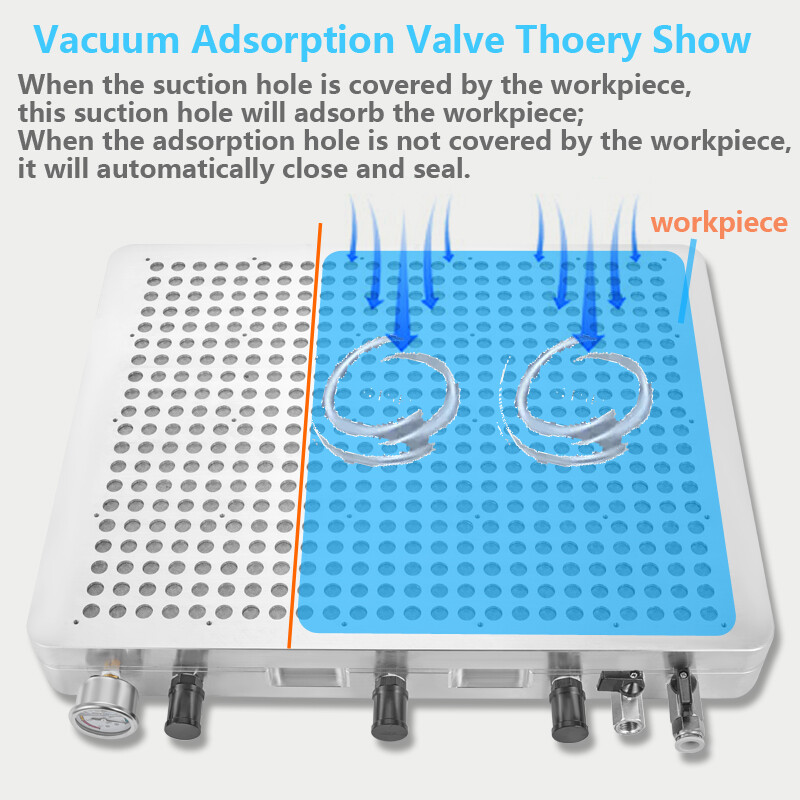

Vacuum Adsorption Valve Theory Show

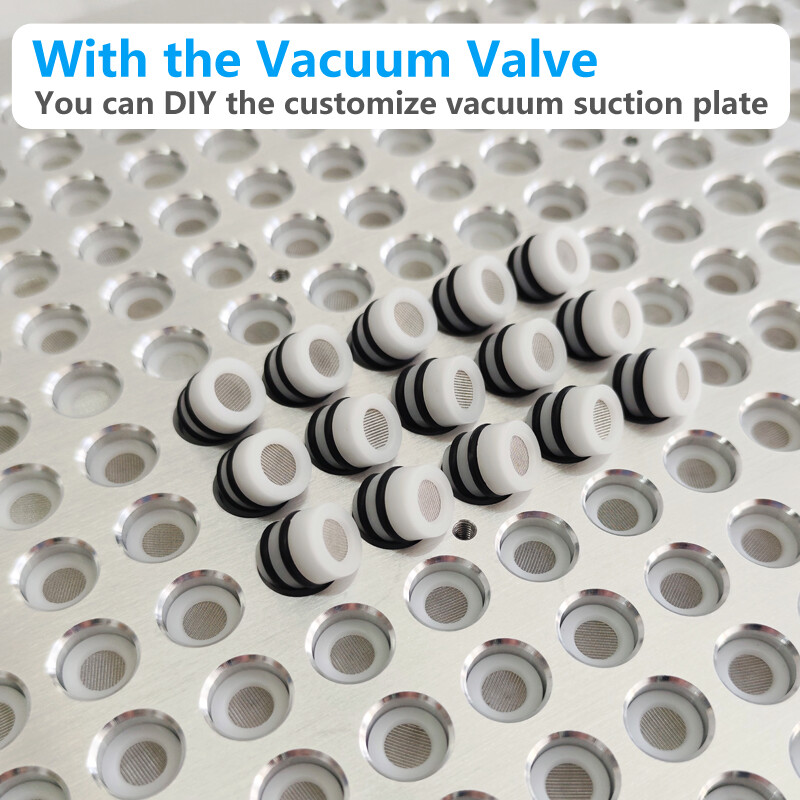

DIY Custom Suction Plate

DIY Customize Vacuum Suction Plate

Application Scenarios

Suction Table

Create custom vacuum suction tables for various workpiece sizes

Oil-water Isolation

Suitable for applications requiring fluid isolation

Pressure Holding Chamber

Maintain vacuum pressure in sealed chamber applications

Flexible Configuration

Arrange valves in any pattern to match your workpiece

Typical Applications

Custom vacuum suction plate manufacturing

Flexible workpiece handling systems

Multi-size workpiece adsorption

Oil-water isolation applications

Pressure holding chamber systems
